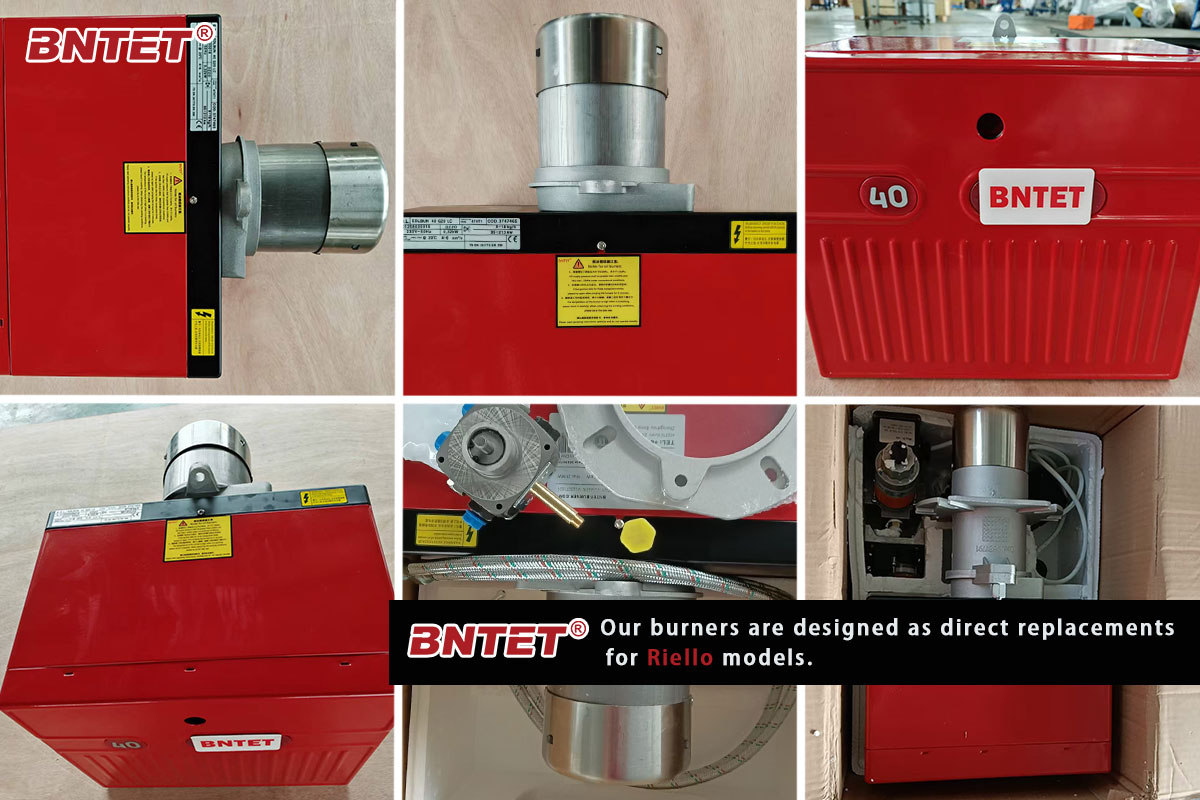

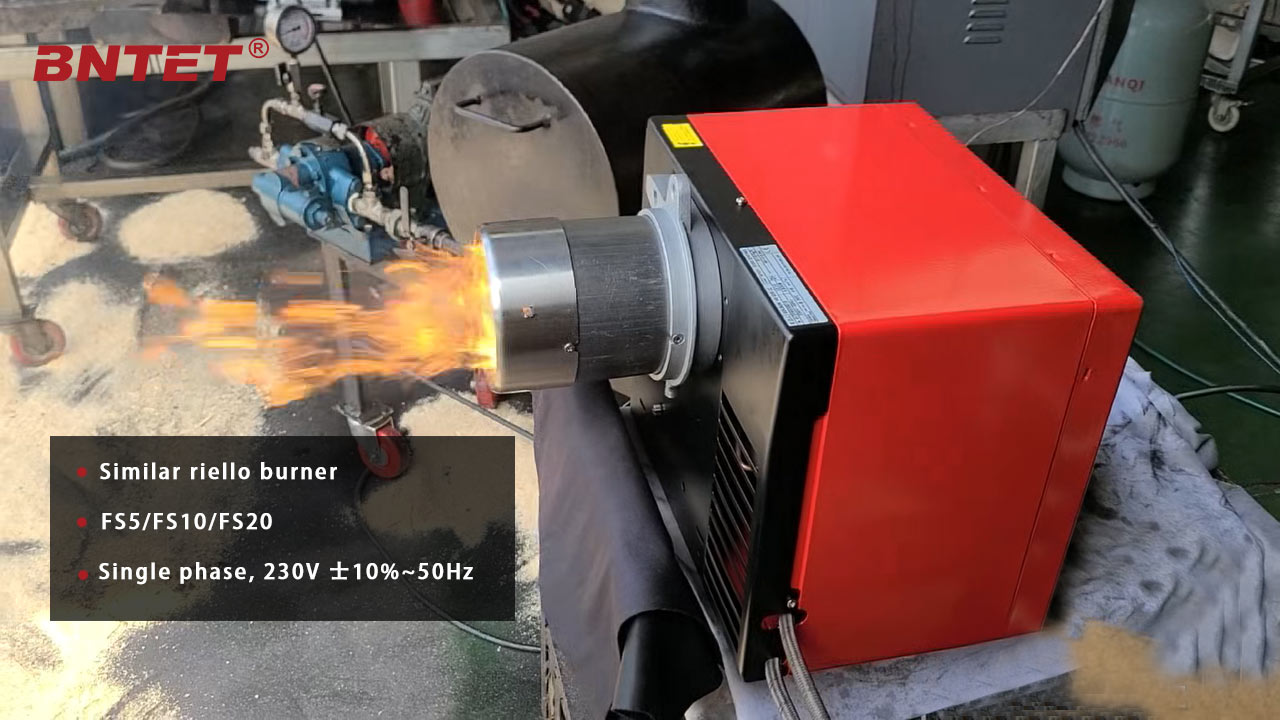

Our similar riello burner
The RIELLO 40 FS series of primary gas burners is a comprehensive product line designed to flexibly meet the needs of various light industrial applications. This series offers three different models with output power ranging from 11 to 220KW, featuring diversified structural designs. All models utilize universal components specifically developed for the RIELLO 40 FS series, with high quality ensuring safe and reliable operation.
The series is equipped with a microprocessor-based flame control panel, which includes diagnostic functions. During the development process, particular emphasis was placed on noise reduction, simplification of installation and adjustment, and achieving a compact design to meet the installation requirements of various types of boilers on the market.
All products in the series are certified according to the EN 676 European standard and comply with relevant European directives on electromagnetic compatibility (EMC), low voltage, machinery, and boiler energy efficiency. Every RIELLO 40 FS burner undergoes rigorous testing before leaving the factory.

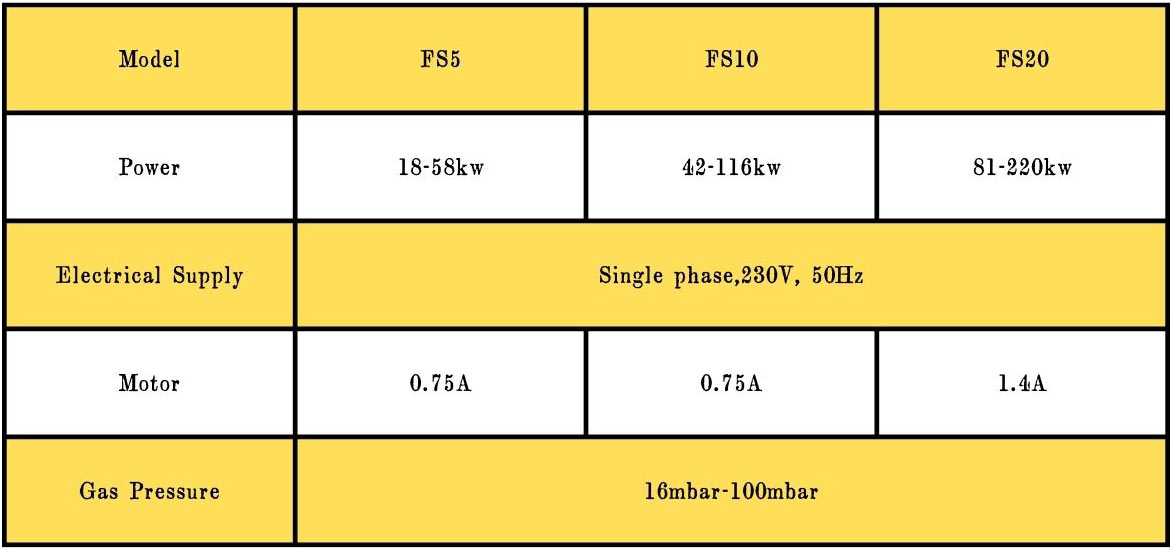

Similar RIELLO Burner parameter table
The FS10 and FS20 models are also equipped with an RMG 88.620 A2 microprocessor control panel for intermittent operation monitoring. To help with debugging and maintenance, there are two main elements here. Switch: The lockout reset button is the central control element for resetting the burner control and activation/deactivation diagnostic functions. switch Light: The multi-color LED is the central indicator element for visual diagnostics and interface diagnostics.

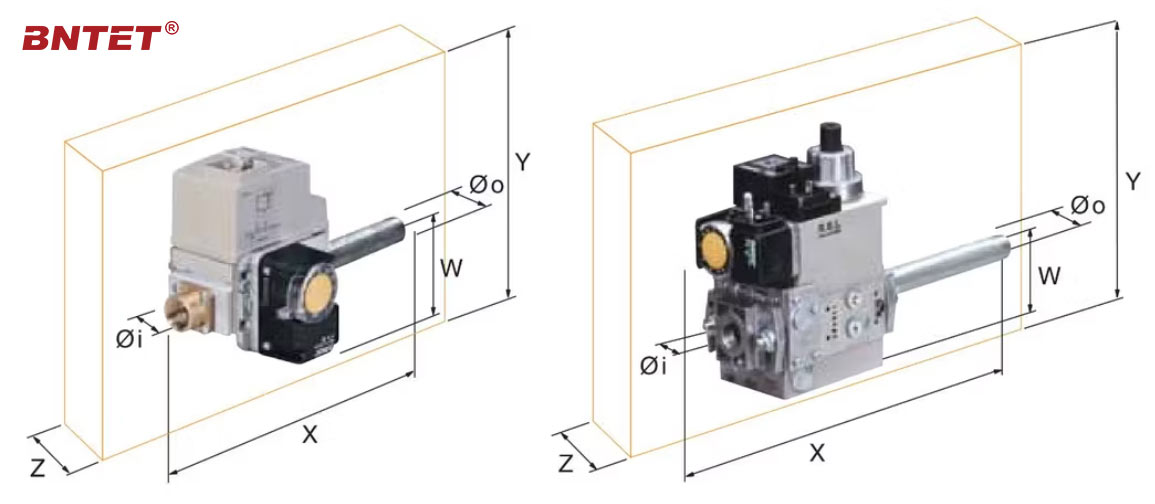

GAS TRAINS:
The burners are fitted with a butterfly valve to regulate the fuel, controlled by the main management module
of burner through a high precision servomotor.
Fuel can be supplied either from the right or left sides, on the basis of the application requirements.
A maximum gas pressure switch stops the burner in case of excess pressure in the fuel line.
The gas train can be selected to best fit system requirements depending on the fuel output and pressure in
the supply line.
The gas trains are with or without seal control.

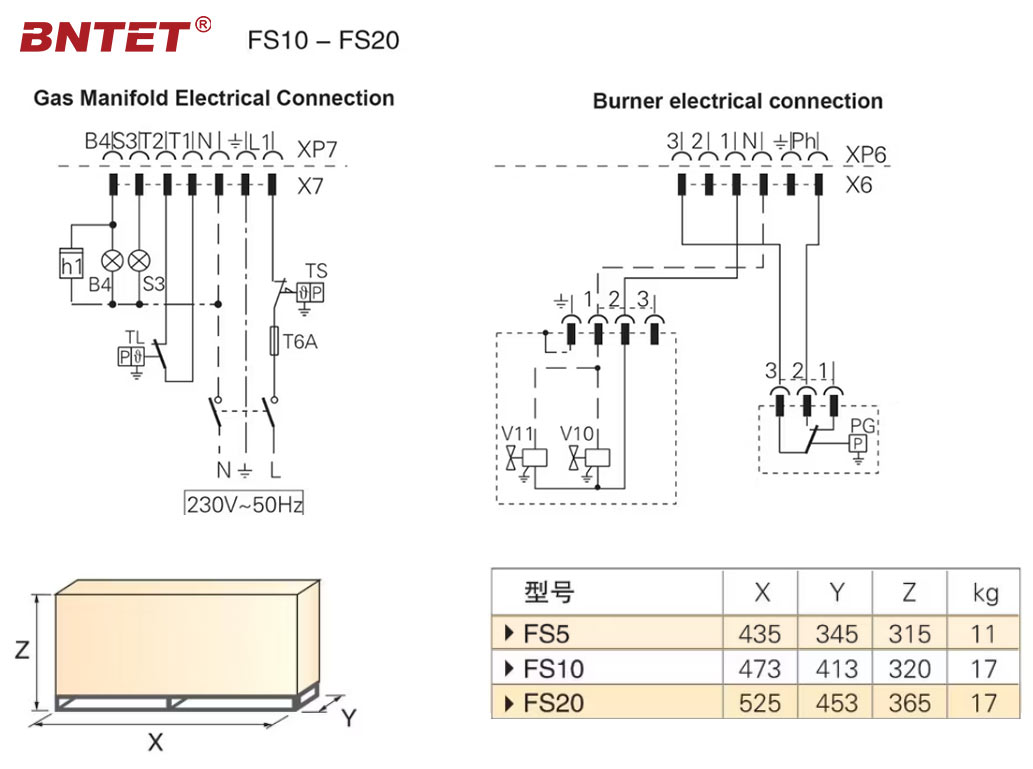

Similar Riello Electrical Connection Diagram
