Engineered for Maximum Combustion Efficiency, Minimum Operational Cost
Stop wasting fuel and money with inconsistent, inefficient combustion. BNTET Boiler Diesel Oil Burner delivers superior atomization, intelligent adaptive control, and robust reliability—engineered for continuous industrial operation while slashing your fuel consumption by up to 18%.
BNTET Boiler Diesel Oil Burner is more than just a burner; it's a complete fuel optimization system. Our mechanical atomization technology ensures that every drop of fuel achieves optimal combustion, delivering top performance under various load conditions.
Recommended burner power configuration table for boilers of various tonnages
| Boiler Evaporation Capacity (t/h) | Estimated Heat Load (kW) | Recommended Fuel Oil Burner Power Range (kW) | Common Burner Model Examples (Reference) | Remarks |
|---|---|---|---|---|
| 2 t/h | ~1,400 kW | 1,400 - 1,600 kW | e.g., Riello RN3/RL series, Baltur BD series, Ecoflam E series, BNTET BNL120DSG | Mainstream configuration for small commercial/industrial boilers |
| 4 t/h | ~2,800 kW | 2,800 - 3,200 kW | e.g., Riello RN4/RLS series, larger Baltur models, corresponding models from Oertli/Weishaupt, BNTET BNL300P | Common configuration for medium-sized industrial boilers |
| 6 t/h | ~4,200 kW | 4,200 - 4,700 kW | Typically require monobloc or split-type high-power burners, BNTET BNL600P | Entering the range of larger industrial boilers |
| 10 t/h | ~7,000 kW | 7,000 - 7,800 kW | Mostly split-type burners (separate fan and burner head),BNTET BNFT10L | Large industrial boilers, diverse fuel options |
| 15 t/h | ~10,500 kW | 10,500 - 11,500 kW | Must use high-power split-type burners, BNTET BNFT15L | Requires customized design, complex control systems |
Calculation formula for boiler configuration with oil burner
Advantages of BNTET boiler oil burners
⚠️ Avoid high fuel costs: Complete combustion, no waste of diesel or other fuels.
⚠️ Avoid poor stability: Flame pulsation, stable pressure.
⚠️ Avoid high maintenance costs: Unobstructed nozzles, no downtime.
⚠️ Avoid cumbersome manual operation: Reduces operator workload.

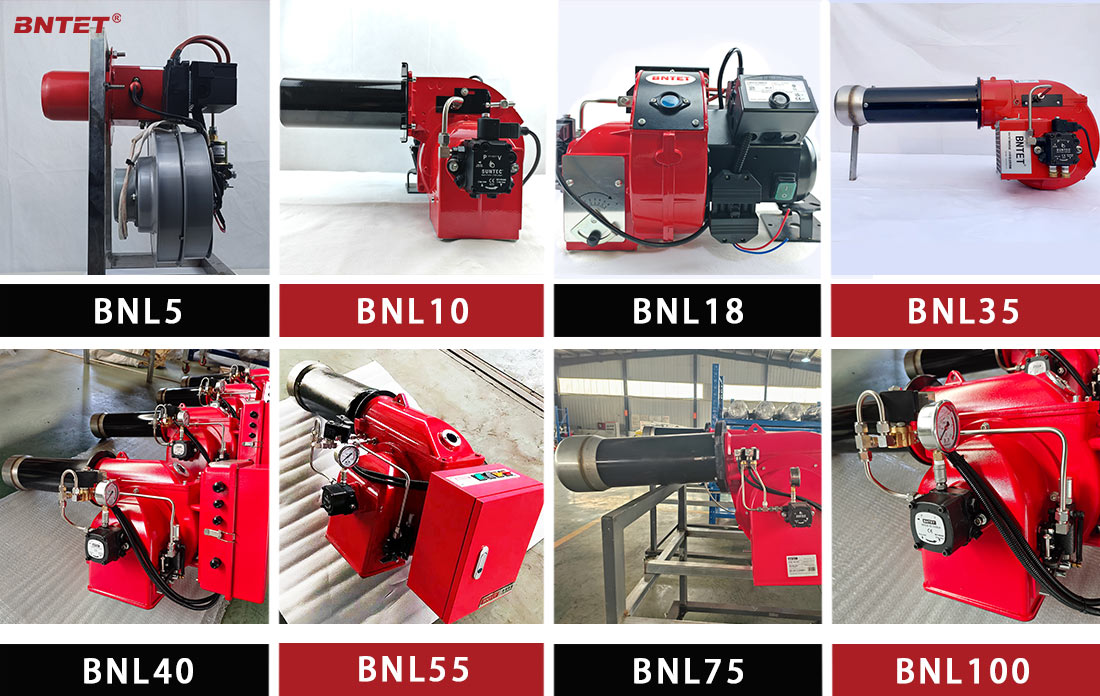

Boiler Diesel Oil Burner Image Display

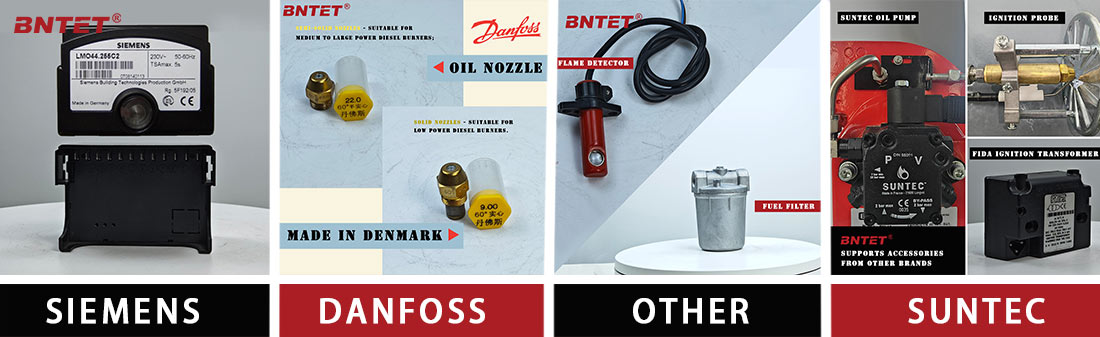

Boiler Diesel Oil Burner Brand accessories
We offer Chinese-made parts, which are of high quality and available at more favorable prices. We also accept custom-made brand parts. Contact us for more detailed pricing information.

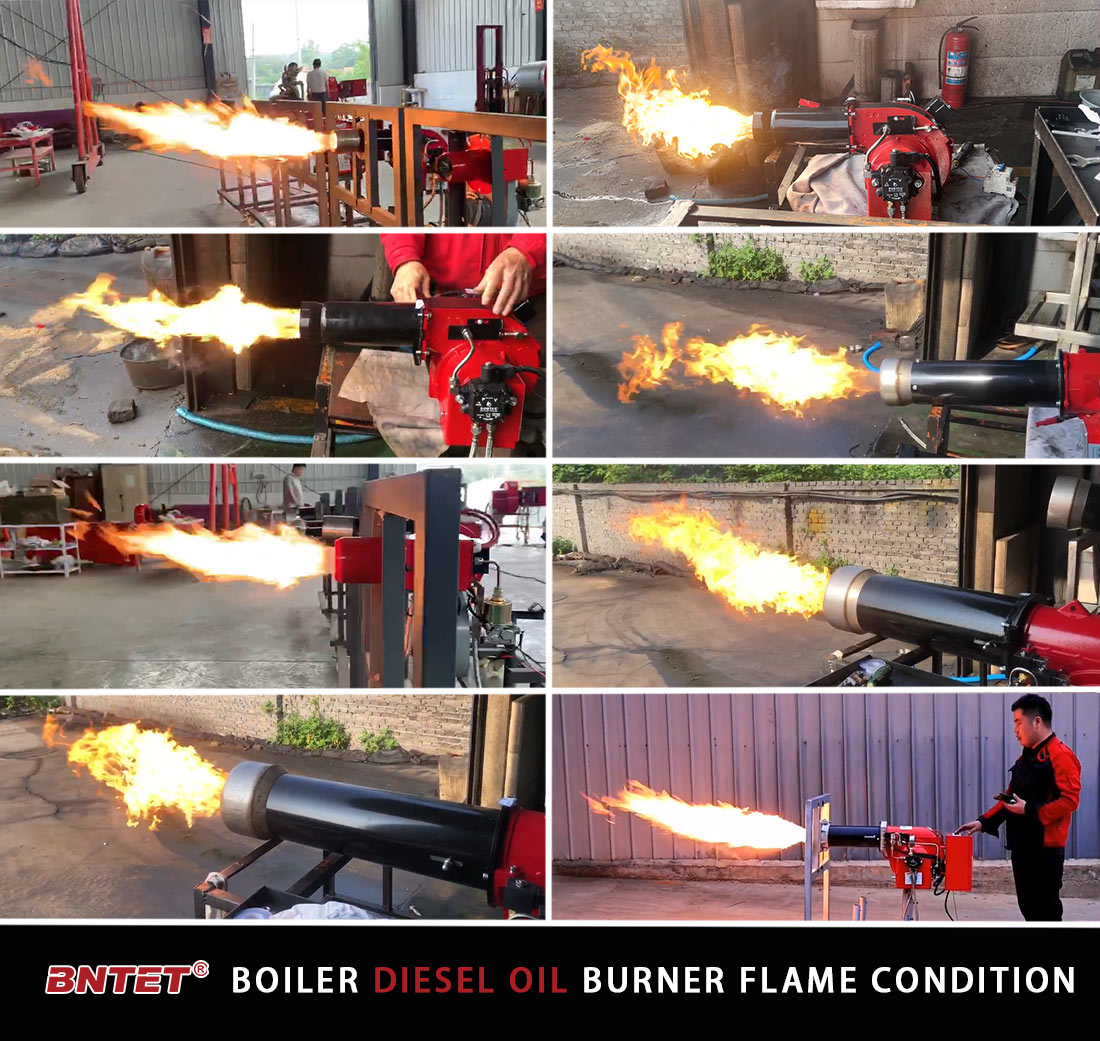

Boiler Diesel Oil Burner Fire Flame

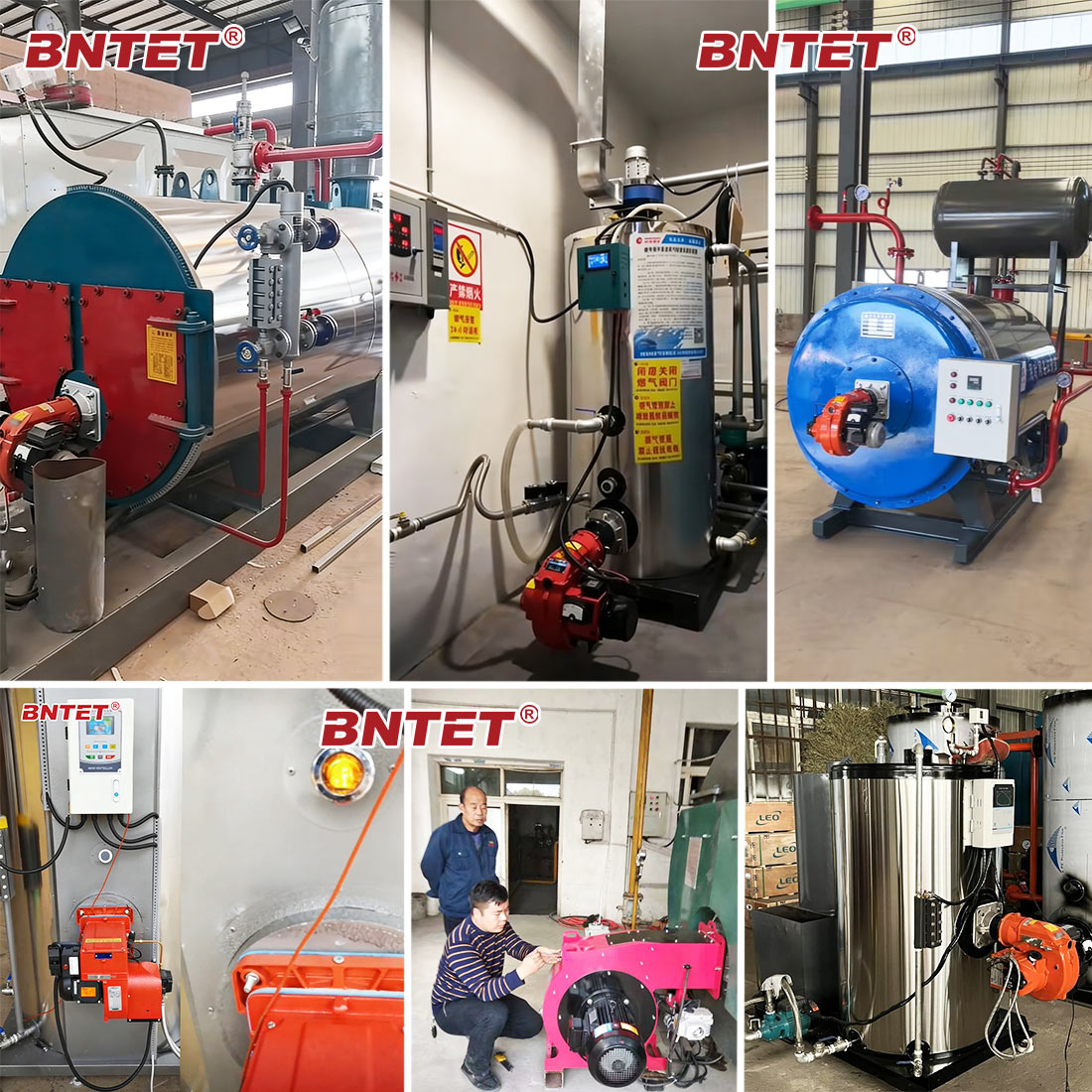

Our Boiler Diesel Oil Burner Case
