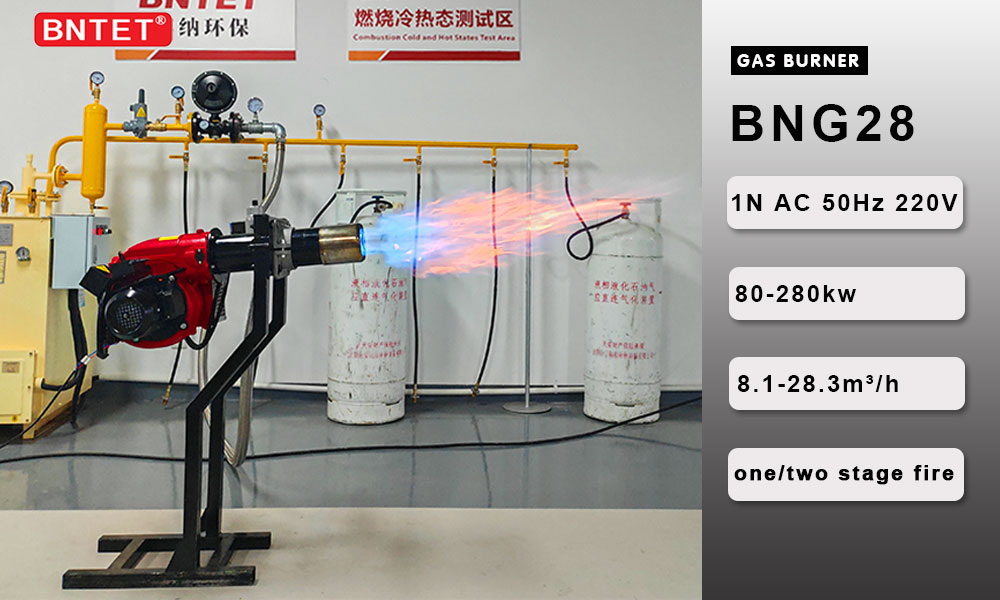

Product Description
Gas burners are widely used in boiler heating and industrial kiln heating, hence they are also called boiler gas burners and industrial gas burners.
They are devices that mix gas (such as natural gas, liquefied petroleum gas, biogas, etc.) with air in a certain proportion and organize combustion through a specific structure, stably and efficiently converting chemical energy into thermal energy.

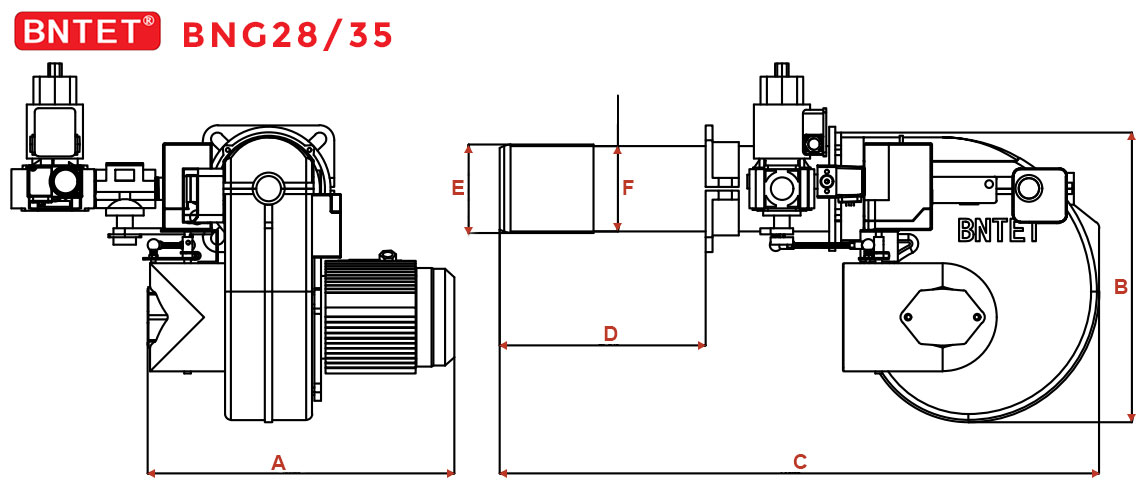

Boiler Gas burner dimensions and parameters
| Burner Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
| BNG28 | 408.50 | 386.25 | 798.5 | 120-280 | Φ118.00 | Φ114.00 |
| BNG35 | 408.50 | 386.25 | 798.5 | 120-280 | Φ118.00 | Φ114.00 |
| Burner Model | Power(Kw) | Gas Flow(m³/h) | Power supply | Motor Power(Kw) | Packing Size L*p*H (mm) | Weight(Kg) | Control |
| BNG28 | 80-280 | 8.1-28.3 | 1N AC 50Hz 220V | 0.37 | 850x530x395 | 28 | One/Two Stage |
| BNG35 | 90-360 | 9.1-36.4 | 1N AC 50Hz 220V | 0.37 | 850x530x395 | 28 | One/Two Stage |

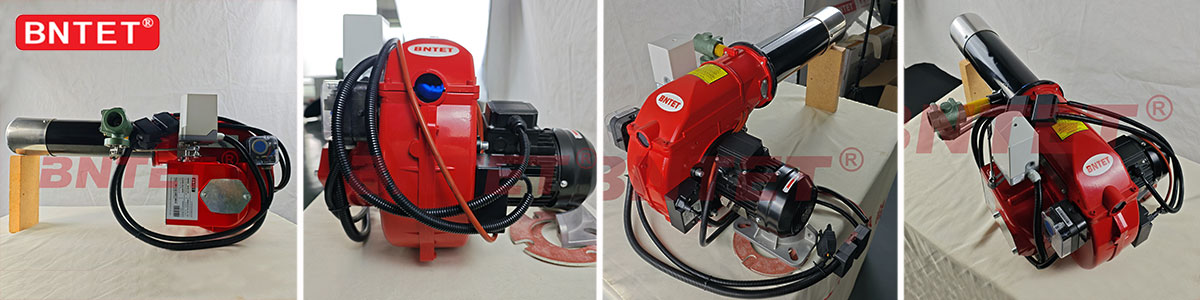

The Display Video of Gas Burner BNG 28/35

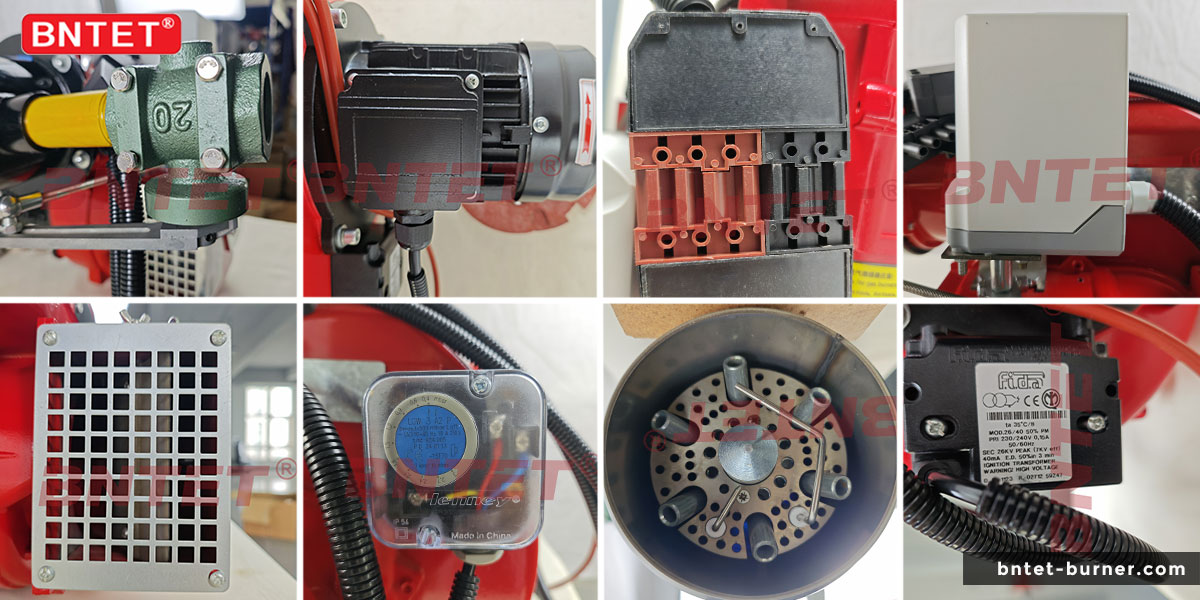

The Feature of Gas Burner BNG 28/35
| Description |
|---|
| 1. Gas-fired burner. |
| 2. One/Two-stage working. |
| 3. Air-gas mixing at blast-pipe. |
| 4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe. |
| 5. Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler. |
| 6. Single stage manual flow adjustment. |
| 7. Two stage Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue. |
| 8. One flange and one insulating seal for boiler fastening. |
| 9. Combustion air intake with air flow adjustment device. |
| 10. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers. |
| 11. Monophase electric motor to run fan. |
| 12. Flame presence check by ionisation electrode. |
| 13. Electrical plant protection rating IP40. |
Case

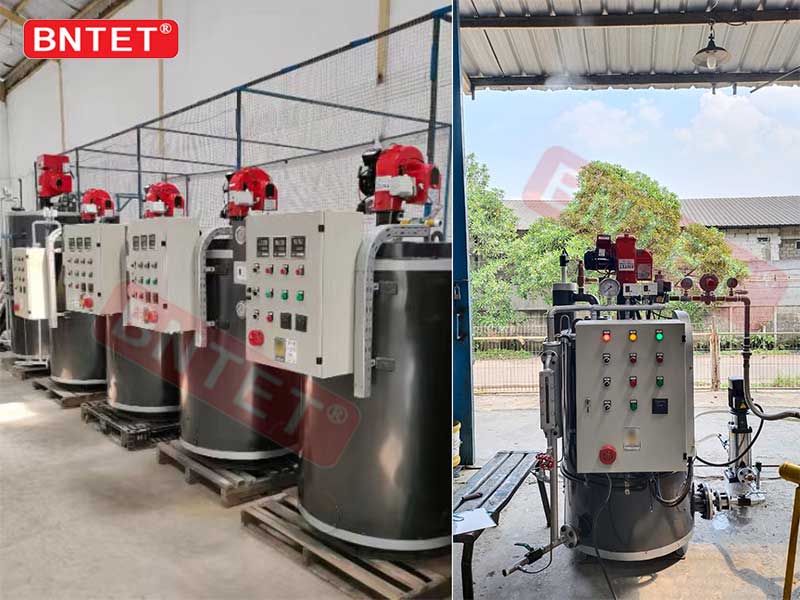

Gas burner connected to small boiler in Indonesia→
BURNER MODEL: GAS BURNER BNG28P
FUEL:LPG GAS
POWER:80-280KW
APPLICATION:BOILER
PROJECT LOCATION:INDONESIA
Typical Applications
Our experience in nearly all types of industrial burner applications ensures you of quality products that meet the rigorous demands of your operation.
• Ovens
• Ovens
• Air heaters
• Textile machines
• Food, paper & pulp, and plastic processing
• Paper drying
• Fume incineration
• Metal industry
• Low temperature metal finishing
