Gas Burner BNG 15

Gas Burner | 2023-12-18 17:02

CLICK HERE TO SEE THE PRODUCT IGNITION TEST

Product Description

Product Name	Boiler Burner/Industrial Burner
Type	Gas Burners
Control method	One Stage Fire
Application	Boliers eqyuonebtm, hot blast stoves, drying applications, dryers, industrial kilns, furnaces, incinerators, calcining,equipment,ovens,spraying,ironing,power plants, metallurgy, steel, food processing and other industries that use thermal energy equipment.

Gas Burner BNG 15 Technical Performance

♦Gas-fired burner.
♦One/Two-stage working.
♦Air-gas mixing at blast-pipe.
♦Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
♦Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
♦Single stage manual flow adjustment.
♦Two stage Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.
♦One flange and one insulating seal for boiler fastening.
♦Combustion air intake with air flow adjustment device.
♦Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
♦Monophase electric motor to run fan.
♦Flame presence check by ionisation electrode.
♦Electrical plant protection rating IP40.

Parameter of Gas Burner BNG 15

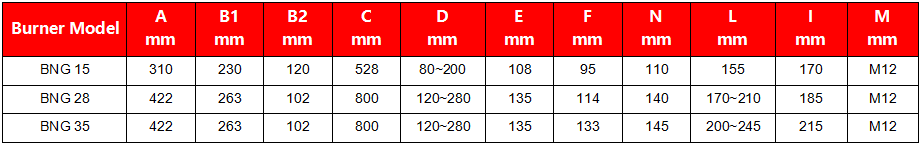

Gas Burner BNG 15-35 dimensional-diagram01.jpg

Gas Burner BNG 15-35 data sheet01.jpg

Gas Burner BNG 15-35 data sheet02.jpg
