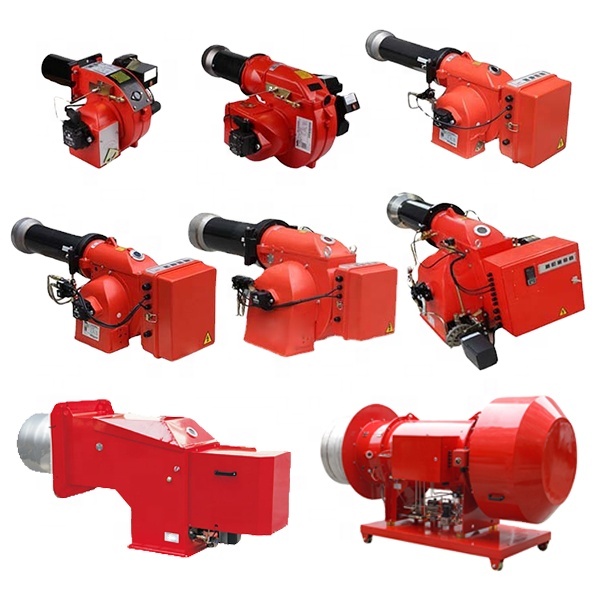

Five major components of the BNTET burner:
1. Air supply system: The function of the air supply system is to send air with wind speed and air volume into the combustion chamber. Its main components are: shell, fan motor, fan impeller, air gun fire tube, air door controller, air door baffle plate , Cam adjustment mechanism, diffuser.
2. Ignition system: The function of the ignition system is to ignite the mixture of air and fuel, and its main components are: ignition transformer, electric fire high-voltage cable.
3. Monitoring system: The function of the monitoring system lies in the stable operation of the burner. Its main components are flame monitor, pressure monitor, temperature monitor, etc.
4. Fuel system: The function of the fuel system is to burn the fuel required by the burner. Mainly include: oil pipes and joints, oil pumps, solenoid valves, nozzles, heavy oil preheaters.
5. Electronic control system: The electronic control system is the command and communication of the above systems. The main control element is the program controller, which is equipped with different program controllers for different burners. Common program controllers are: LFL series, LAL series, LOA The main difference between series and LGB series is the time of each program step.
Application scope:
1. Used in boilers to burn steam and boiling water: such as garment factories, catering industries, etc.,
2. Used in powder spray drying production line,
3. Applied in zinc aluminum alloy die casting industry
4. Applied to various thermal energy equipment, such as road building, asphalt heating heat conduction furnace, food oven, air conditioning machine heater, snow sweeper, garbage incinerator, hot air generator and various general boilers.
