Siemens SQN30 gas burner Servo Motor Series

  Parts     |      2020-08-07 16:27
gas burner Servo Motor Series

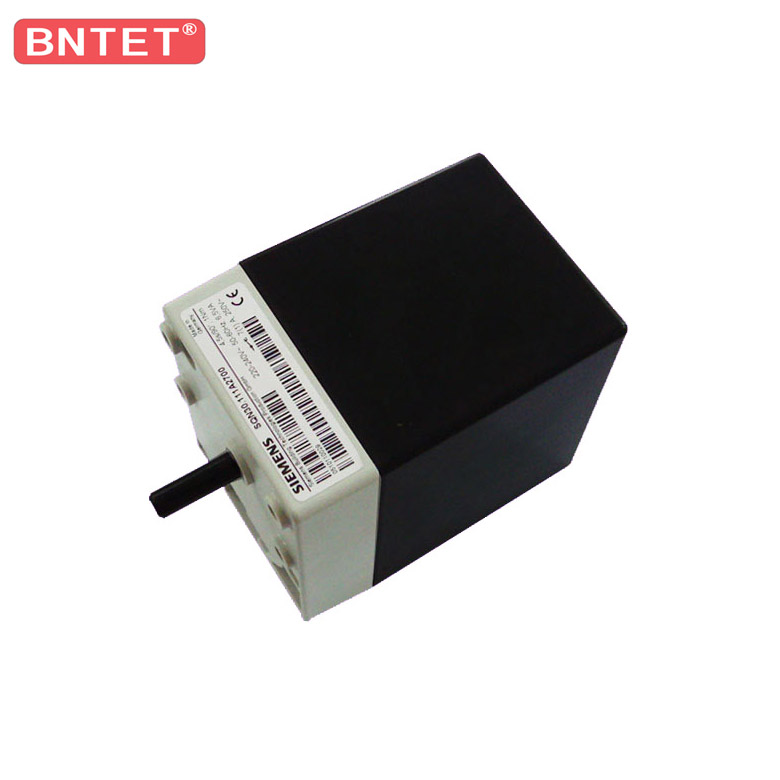

SQN30...Electric actuator, namely servo motor, used for damper or air/fuel ratio control of medium and small fuel or gas burners. Counterclockwise rotation, running time 4.5S-30S, cam control, gear clutch. Internal and external position indication, equipped with terminal and auxiliary switch for easy adjustment.

Structural features

Actuator housing-composed of pressure-resistant and heat-resistant plastic shell. Color: black and gray.

The housing of the gear shaft is made of aluminum die-casting, with 4 threading holes reserved, which can be used to thread the Pg11 sealing sleeve.

Synchronous motor with self-locking.

Cam contact adjustment

Use adjustable cam.

The scale on the side of the cam indicates the angle of the cam contact.

The cam can be adjusted manually or with a special wrench or similar tool attached.

other

Built-in: mark at the beginning of one end of the gear transmission mechanism.

Electrical connection: screw terminal.

Transmission gear: The transmission gear belt is self-lubricating and requires no maintenance.

Drive shaft: smoothly coincide with the front end of the transmission mechanism.
